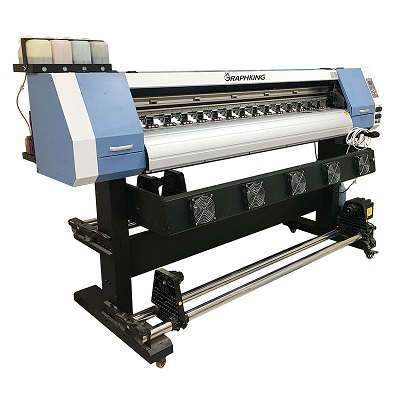

GraphKing 6ft 1.8m GK18S Dye Sublimation Printer with XP600/DX5/DX7 Print Head; Nigeria Warehouse

Inqury Now

Chat Now

GraphKing 6ft GK18S Dye Sublimation Printer is our most popular model since 2013.

GK18 has gained good popularity among our domestic market and oversea dealers with it's fashionable outlook, stable performance, wide application range and cost effective features.

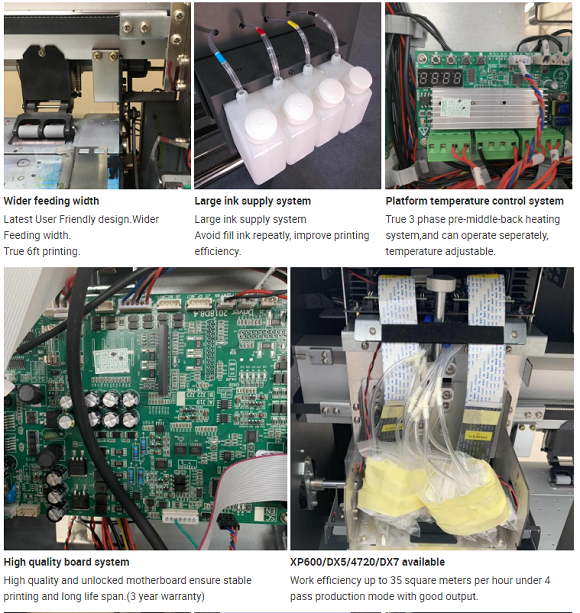

Features

1) Fashionable outlook and durable mechannical design

2) EP SON DX5/DX11/5113 print heads for high resolution image output

3) Standard ICC file tested with different print head and our inks for best color performance

4) 1800mm large print size meet wide range of print jobs for your business

5) Easy for installation, use and maintain.

GK18 is easy for you to install and starting printing with our guidances&support based on manual book and installation video. If you meet problem in using our printers, just conatct us with specific situation, we will provide suitable solutions for you to solve.

2. Technical Parameters

Model		GK18S
Print Head*Quantity		Epson xp6001(2)	Epson DX51(2)	Epson 51131(2)
Print Head Technology		variable ink drop technology
Print resolution		1080dpi	1440dpi	3200dpi
Max Print Width & Feeding Width		1800mm & 1830mm
Print Speed	Production Mode	15.9㎡/h	18.5㎡/h	21.6㎡/h
	Quality Mode	12.3㎡/h	15.3㎡/h	18.1㎡/h
	Accuracy Mode	8.2㎡/h	12.8㎡/h	15.6㎡/h
Ink	Ink Type	Eco solvent/ water-based ink	Eco solvent/ water-based ink/ sublimation ink	water-based ink/sublimation ink
	Color	CMYK
	Ink Tank Volume	1000ml tank for each color
	Supply Type	Negative pressure continuous ink supply system
Print Media	Water-based Media	PP self-adhesive vinyl, backlit film, photopaper, movable PP self-adhesive vinyl, photo cloth etc.
	Eco solvent Media	flex banner,vinyl,PP paper ,one way vision,canvas,car sticker, reflective film, PVC cold lamination film etc.
Heating System		Fore /back heating
Drying System		fans(optional:infrared heating system)
Media Feeding & Take-up System		Auto roll feeding and take-up system
Cleaning System		Automatic cleaning system
Data Transmission		Network port printing
Software		Maintop/Photoprint(Optional)
Power Supply		AC:220V/110V，50Hz/60Hz Operating temperature 15° C-30° C relative humidity 40-60%
Power		600W
Single Head:Machine Weight/ Size		140kg±5%/28374551300mm(Dual head:180kg±5%/30374551300mm)
Single Head:Package Weight/Size		180kg±5%/2900850670mm(Dual head:220kg±5%/3100850670mm)
