GraphKing 5ft 1.6m GK16High Quality/Speed Eco Solvent Printer with 2 pcs DX5

Inqury Now Chat Now

Product Introduction


GraphKing 1.6m large format printer, is using classical fast speed platform, which  realize much faster speed as well as high quality printing.


Optional print head: Epson XP600 /DX5 /DX7 /4720, single head or double heads, to meet different clients' need.

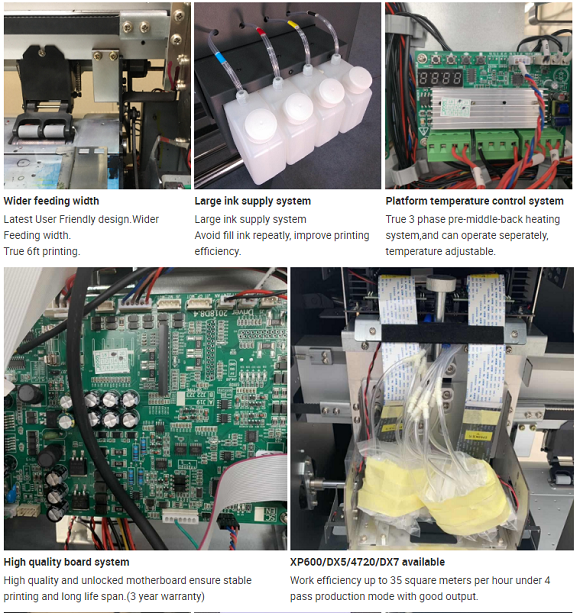

Product Structure



Our Advantages


Imported THK guide rail, stable servo motor, external infrared heating, true three phase heating (front /middle /back), LED light strip, secondary ink cartridge, etc.


Higher configuration makes our machines more competitive in the market.


Guaranteed Service Support:


1 Year Warranty for printer


1 Years Warranty for boards


whole life after sales service, professional engineers team for technical support and solutions


More than 20- year rich printer experience


Pre-Sales professional team for quotations & solution suggestions for outdoor & indoor / sublimation / UV flatbe


Application



Technical Parameters


Model
GK16
Print Head
Epson XP600/DX5/4720 * 1
Epson XP600/DX5/4720 * 2
Print resolution
Max 1440dpi (4720: 3200 dpi)
Max 1440dpi (4720: 3200 dpi)
Feeding Width
1650mm
1650mm
Print Width
1600mm
1600mm
Print Speed
4 Pass
15.9 m²/h
35 m²/h
6 Pass
12.3 m²/h
28 m²/h
Ink
Ink Type
Eco solvent ink / water-based ink / Sublimation Ink
Color
CMYK 4 colors
Tank volume
1500ml tank for each color
Supply type
Negative Pressure CISS continuous ink supply

Print

Media

Water-based

Media

PP self-adhesive vinyl, backlit film, photo paper, movable PP self-adhesive vinyl, photo cloth etc.

Oil-based

Media

photo paper , canvas ,car sticker, reflective film, PVC cold lamination film etc.
Heating System
Inside automatic smart micro control heating system
Drying System
Infrared heating system with fans
Media Loading & Take up
Standard
Cleaning System
Automatic cleaning
Data Transmission
1000M Network port
RIP Software
Maintop, Photoprint / ONYX (optional)
Power Supply
AC220V ± 10%, 50Hz/60HZ
Power
Stanby: 32W, Max: 2300W
Operation Environment
temperature 15° C-30° C
relative humidity 40-60% RH
Package Size and Weight
2440*766*665mm / 240kg±5%
2440*766*665mm / 250kg±5%


Home >> Product >>BestLargeFormatPrinterFactory >> GraphKing 5ft 1.6m GK16High Quality/Speed Eco Solvent Printer with 2 pcs DX5
详细说明

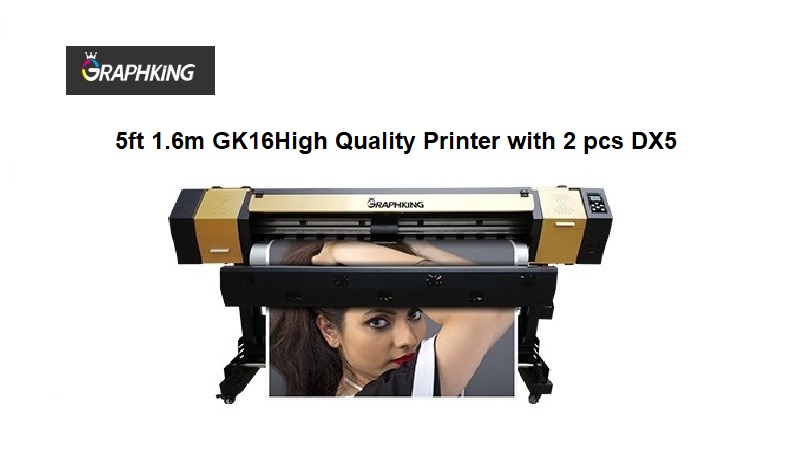

GraphKing 5ft 1.6m GK16High Quality/Speed Eco Solvent Printer with 2 pcs DX5

is equipped with 2 pcs Epson DX5. 1650mm print width, 1000mb network portprint interface and ink drop variable tech ensuresstableand high qualityprint output.
Inqury Now Chat Now
Product details



Product Introduction


GraphKing 1.6m large format printer, is using classical fast speed platform, which  realize much faster speed as well as high quality printing.


Optional print head: Epson XP600 /DX5 /DX7 /4720, single head or double heads, to meet different clients' need.



Product Structure



Our Advantages


Imported THK guide rail, stable servo motor, external infrared heating, true three phase heating (front /middle /back), LED light strip, secondary ink cartridge, etc.


Higher configuration makes our machines more competitive in the market.


Guaranteed Service Support:


1 Year Warranty for printer


1 Years Warranty for boards


whole life after sales service, professional engineers team for technical support and solutions


More than 20- year rich printer experience


Pre-Sales professional team for quotations & solution suggestions for outdoor & indoor / sublimation / UV flatbe


Application



Technical Parameters


Model
GK16
Print Head
Epson XP600/DX5/4720 * 1
Epson XP600/DX5/4720 * 2
Print resolution
Max 1440dpi (4720: 3200 dpi)
Max 1440dpi (4720: 3200 dpi)
Feeding Width
1650mm
1650mm
Print Width
1600mm
1600mm
Print Speed
4 Pass
15.9 m²/h
35 m²/h
6 Pass
12.3 m²/h
28 m²/h
Ink
Ink Type
Eco solvent ink / water-based ink / Sublimation Ink
Color
CMYK 4 colors
Tank volume
1500ml tank for each color
Supply type
Negative Pressure CISS continuous ink supply

Print

Media

Water-based

Media

PP self-adhesive vinyl, backlit film, photo paper, movable PP self-adhesive vinyl, photo cloth etc.

Oil-based

Media

photo paper , canvas ,car sticker, reflective film, PVC cold lamination film etc.
Heating System
Inside automatic smart micro control heating system
Drying System
Infrared heating system with fans
Media Loading & Take up
Standard
Cleaning System
Automatic cleaning
Data Transmission
1000M Network port
RIP Software
Maintop, Photoprint / ONYX (optional)
Power Supply
AC220V ± 10%, 50Hz/60HZ
Power
Stanby: 32W, Max: 2300W
Operation Environment
temperature 15° C-30° C
relative humidity 40-60% RH
Package Size and Weight
2440*766*665mm / 240kg±5%
2440*766*665mm / 250kg±5%
